Extra GitHub features: Actions & Pages

In this GitHub repository, we are using GitHub Actions to carry out a number of automated tasks. These actions are stored within the repository in the hidden folder: .github/workflows/. The yaml files within (e.g., docs.yml and pypi.yml) carry out a set of steps or actions when triggered by an event on GitHub.

For example:

• On pull request, the actions docs.yml and tests.yml are triggered.

• On push (when a pull request is merged onto the upstream main), the action docs_deploy.yml is triggered.

• When a release is generated on Github, the action pypi.yml is triggered.

The basic behaviour is explained in the template repository that this project was built on at http://github.com/eleanorfrajka/template-project/ or in the docs at https://eleanorfrajka.github.io/template-project/github.html.

This project’s Actions

The way that this project (http://github.com/AMOCcommunity/amocarray) is set up:

• the docs.yml attempts to build the documentation which is contained in docs/source/ and built to docs/build/. It sets up the environment based on requirements-dev.txt, installs the project with pip install, and builds the documentation including running the notebooks/demo.ipynb.

• the tests.yml uses pytest to run the tests contained within the tests/ directory, and it does this on several platforms (windows, mac and linux) and with a couple versions of python.

• the docs_deploy.yml is like docs.yml but additionally moves the resultant files onto the branch gh-pages. Because of how we’ve set up the “Pages” of this repository (https://github.com/AMOCcommunity/amocarray/settings/pages), it updates the website that is hosted on github at https://amoccommunity.github.io/amocarray/.

• the pypi.yml is triggered on a release, and it uses the information in pyproject.toml and builds a distribution (see lines like python -m build -sdist --wheel . --outdir dist) into the dist/ directory. In order for this to run properly, several other steps need to be set up e.g., on https://pypi.org/project/amocarray/, including setting a trusted publisher so that the Github Action is allowed to publish to this project on pypi.

For contributors

Most of the setup has been taken care of already. What is useful to know as a contributor?

When you make a pull request (PR), Github will try to build the docs and run the tests. Sometimes these are hard to troubleshoot online, or maybe you’d like to test them before making your pull request to fix some of the bugs.

Check demo.ipynb

Before making a PR, you can try to run demo.ipynb on your fork/branch to see whether it will run through. Make sure you have the environment activated, restart the kernel, and then try a “run all”. If it works without throwing errors, then it should also work on Github.

Check tests

You can run the tests locally if your environment is built from requirements-dev.txt. Here we’ve also required e.g., pytest.

To run the tests, in the command line on your computer, activate the environment, make sure requirements from requirements-dev.txt are installed, and then run pytest.

For me, this looks like

cd github/amocarray
virtualenv venv
source venv/bin/activate
pip install -r requirements-dev.txt
pytest

Check what is failing.

Build docs

To build the docs locally, you will also need to have an environment with the development requirements installed. These include:

sphinx
sphinx-rtd-theme
pypandoc
nbsphinx
nbconvert
myst-nb

When you’d like to test the build of your documentation (prior to submitting pull requests to the repository), navigate to the docs/ directory in a terminal window, and run

cd github/amocarray/docs
make html

This will generate the website within the directory docs/build/html/, which you can open from a browser to verify that everything worked.

For maintainers

If you also have the rights/inclination to publish a release to PyPi, you can test this before creating the release on GitHub. There’s also a slightly finicky set of steps that needs to be done in a special order to make sure the GitHub “tag” matches the PyPi “version”.

Build distribution

First go to the directory where your repository is located (i.e., where pyproject.toml is located):

cd github/amocarray

To build the distribution locally, make sure you have the latest version of build installed:

python3 -m pip install --upgrade build pip wheel setuptools setuptools_scm build twine

Then run the build step from the directory where pyproject.toml is located,

python3 -m build --sdist --wheel . --outdir dist

You can check this with

ls dist
python -m twine check dist/*

You can also verify the version number

more amocarray/_version.py

Publishing a release

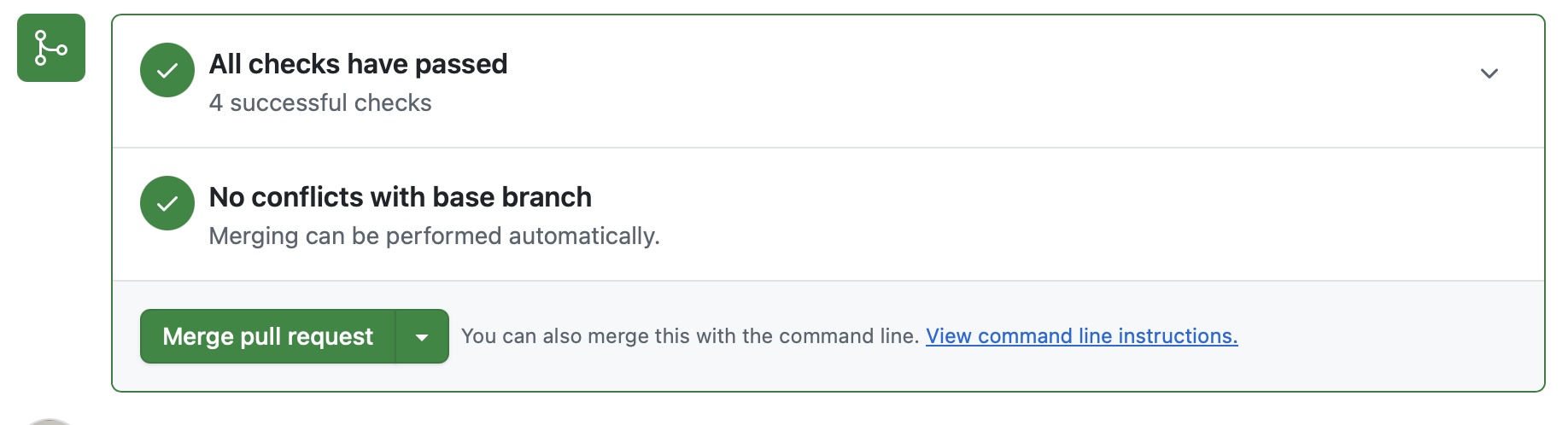

1. On Github.com, upstream main: Ensure all desired changes are merged into the main branch. So, after you do a PR from your branch to the upstream main, resolve any problems and “merge”, then you’re ready to go.

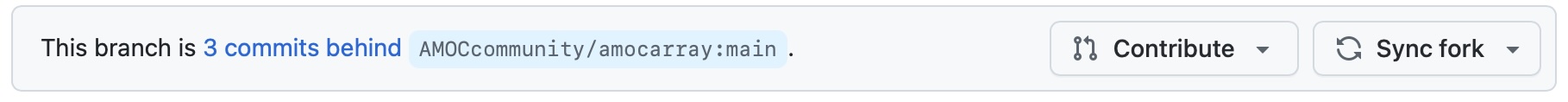

2. On Github.com, your forked main: If you’re working from a branch (e.g., yourname-patch-21) of your fork (http://github.com/YOUR_USERNAME/amocarray) of the upstream main (http://github.com/AMOCcommunity/amocarray), then you’ll want to sync your main to the upstream main. On github.com, at http://github.com/YOUR_USERNAME/amocarray, you should see that your main is “X commits behind”. There is a button where you can sync.

3. On your computer, terminal: In your repository directory, checkout main and pull any changes:

cd github/amocarray

git checkout main
git pull

4. On your computer, terminal Same place, but now we’re going to create the tag. First make a note of the last tag. On Github.com, the upstream main, you can check what tags have already been used (i.e., https://github.com/AMOCcommunity/amocarray/tags).

The usual process is to start with a vX.Y.Z and possibly have an “alpha” or “beta” following as vX.Y.Za2. These are called PEP440 style versioning, with an alpha prerelease tag (a1=alpha 1). The “X” indicates a big change, the “Y” a minor change, and the “Z” a patch or little fix.

MAJOR.MINOR.PATCH[pre-release]

• MAJOR: Backward-incompatible changes Increment when you make changes that break existing APIs or data formats. Example: changing function signatures, renaming modules, or changing expected output structures.

• MINOR: Backward-compatible feature additions Increment when you add new functionality in a backward-compatible way. Example: adding a new reader (read_xyz.py), adding new plotting functions, or expanding metadata handling.

• PATCH: Backward-compatible bug fixes or internal improvements Increment for fixes or improvements that don’t add features or break existing code. Example: fixing a unit conversion error, improving docstrings, or cleaning up warnings.

Increment the appropriate one based on the change you’re making, and pick the next available tag. So a pre-release change if we’re at v0.0.2a6 would mean your next version should be indicated with tag v0.0.2a7. Assuming this, the next steps are:

Quick check that you’re on the last commit. The output from this should be your commit message from the PR.

git log -1

Then tag this version using:

git tag v0.0.2a7
git push upstream v0.0.2a7

This step assigns the tag and then pushes it to the upstream main. Go onto Github.com and check that this tag is now there: https://github.com/AMOCcommunity/amocarray/tags.

5. On Github.com

• Go to the Releases tab.

• Click “Draft a new release.”

• Choose the tag you just pushed (e.g. v0.0.2a7) from the dropdown.

• Fill in (or auto-generate) the release notes & edit if necessary.

• Click “Publish release.”

This last step will now trigger the GitHub action, .github/workflows/pypi.yml which will build the distribution and send it to pypi.org. You should see this show up at https://pypi.org/project/amocarray/.

Note: Unexplained behaviour may occur (e.g., you get a dev0 appended to the release on pypi) if you are not at the tip of main (i.e. there are uncommitted changes), or you haven’t included amocarray/_version.py in your .gitignore, in which case the action itself generates a change in the repository which is then interpreted as an uncommitted change.
